Control Panel

Control Panel Manufacturer in India

Tractor Pumps

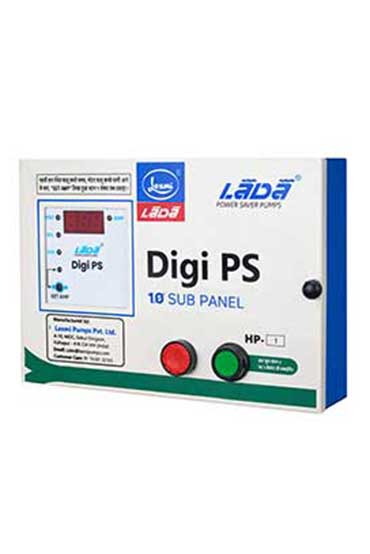

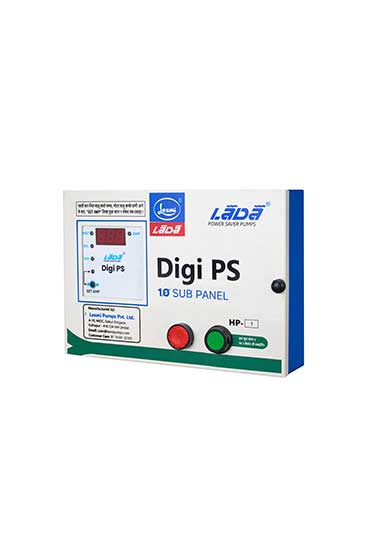

Control Panel Digi PS

Salient Features

  • Safety Protection: Reliable Dry Run and Overload protection to prevent motor damage.
  • Adjustable Timer: Provision to set the motor's running time from 5 minutes to 10 hours.
  • Digital Accuracy: Highly attractive and accurate digital meter display.
  • Customizable Current Settings: Easy to set the specific current (Amps) at which the motor should trip/stop due to dry run or overload.
  • Space Saving: Compact model design that fits into small spaces.

Applications

  • Single Phase Submersible Pumps From 0.5 To 3.00 Hp

Technical Specifications

Useful auto panel for Borewell and Openwell pumps

up to 2 HP

Facility to automatically start the motor after power restoration based on a set delay time

1 to 10 minutes

Reliable Protection: Trusted overload and dry run protection.

Automatic Restart (Dry Run): Facility to automatically restart the motor after it stops due to a dry run, based on a set timing

5 minutes to 10 hours

Setable On/Off Timer: Provision to set the motor's ON and OFF time

between 5 minutes and 10 hours

Tractor Pumps

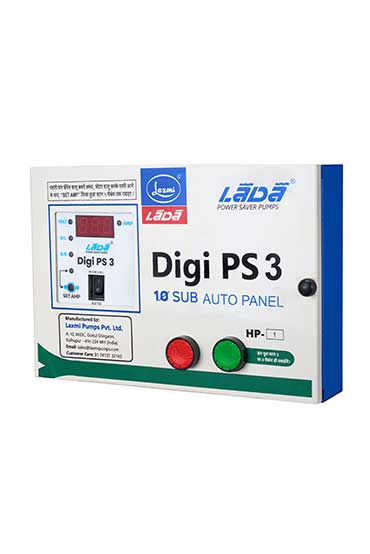

Control Panel Digi PS 3

Salient Features

  • Automatic Restart (Power): Facility to automatically start the motor after power restoration based on a set delay time (1 to 10 minutes).
  • Reliable Protection: Trusted overload and dry run protection.
  • Automatic Restart (Dry Run): Facility to automatically restart the motor after it stops due to a dry run, based on a set timing (5 minutes to 10 hours).
  • Setable On/Off Timer: Provision to set the motor's ON and OFF time (between 5 minutes and 10 hours).
  • Customizable Trip Current: Facility to set the specific current at which the motor should stop due to dry run or overload.
  • Precision Display: Highly attractive and accurate digital meter.

Applications

  • Single Phase Submersible Pumps From 0.5 To 5.00 Hp

Technical Specifications

Useful auto panel for Borewell and Openwell pumps

up to 2 HP

Facility to automatically start the motor after power restoration based on a set delay time

1 to 10 minutes

Reliable Protection: Trusted overload and dry run protection.

Automatic Restart (Dry Run): Facility to automatically restart the motor after it stops due to a dry run, based on a set timing

5 minutes to 10 hours

Setable On/Off Timer: Provision to set the motor's ON and OFF time

between 5 minutes and 10 hours

Tractor Pumps

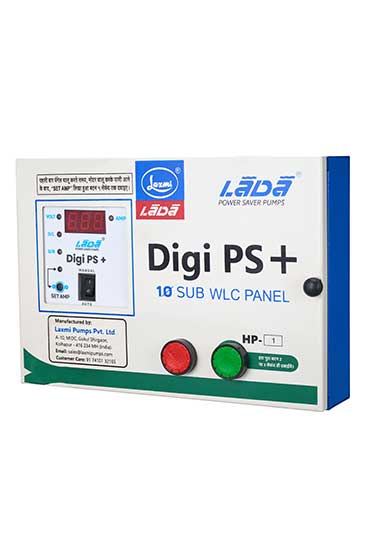

Control Panel Digi PS +

Salient Features

  • Water Level Management: Automatically turns the motor ON or OFF based on the water levels in one or two tanks.
  • Settable On-Delay: Features a programmable Auto- Start delay from 1 to 10 minutes
  • Full Protection: Guaranteed overload and dry run protection.
  • Automatically restarts the motor after a dry run trip based on a set timing of 5 minutes to 10 hours.
  • Timer Facility: Option to set the motor's running and standby (ON/OFF) time from 5 minutes to 10 hours.
  • Current Customization: Facility to set the exact trip current for dry run and overload safety.
  • Digital Interface: Equipped with a precise and attractive digital meter.

Applications

  • Single Phase Submersible Pumps From 0.5 To 5.00 Hp

Technical Specifications

Useful auto panel for Borewell and Openwell pumps

up to 2 HP

Facility to automatically start the motor after power restoration based on a set delay time

1 to 10 minutes

Reliable Protection: Trusted overload and dry run protection.

Automatic Restart (Dry Run): Facility to automatically restart the motor after it stops due to a dry run, based on a set timing

5 minutes to 10 hours

Setable On/Off Timer : Provision to set the motor's ON and OFF time

between 5 minutes and 10 hours
